Cache replacement algorithm explained

-




A line replacement algorithm or Cache replacement algorithm is a method for deciding which line of data to remove from a cache when it is full and a new line needs to be added. There are many different line replacement algorithms, but they all share the same basic goal: to remove the line that is least likely to be used again in the near future.


 Here are the four most common line replacement algorithms explained in easy terms:


FIFO


FIFO stands for first-in, first-out. The FIFO algorithm removes the line that has been in the cache the longest. This is the simplest line replacement algorithm, but it is not always the most efficient. The FIFO algorithm can evict lines that are still being used, which can lead to performance problems.


LRU


LRU stands for least recently used. The LRU algorithm removes the line that has not been used in the longest time. This is a more efficient algorithm than FIFO, but it is also more complex. The LRU algorithm requires keeping track of when each line was last used, which can add some overhead.


LFU


LFU stands for least frequently used. The LFU algorithm removes the line that has been used the least number of times. This is a more efficient algorithm than FIFO and LRU, but it is also more complex. The LFU algorithm requires keeping track of how many times each line has been used, which can add some overhead.


Random


The random algorithm removes a line at random. This is the simplest line replacement algorithm, but it is also the least efficient. The random algorithm can evict lines that are still being used, which can lead to performance problems.


The choice of line replacement algorithm depends on a number of factors, including the size of the cache, the type of data that is stored in the cache, and the pattern of access to the data. In general, simpler algorithms are easier to implement and less complex, but they may not be as efficient as more complex algorithms.

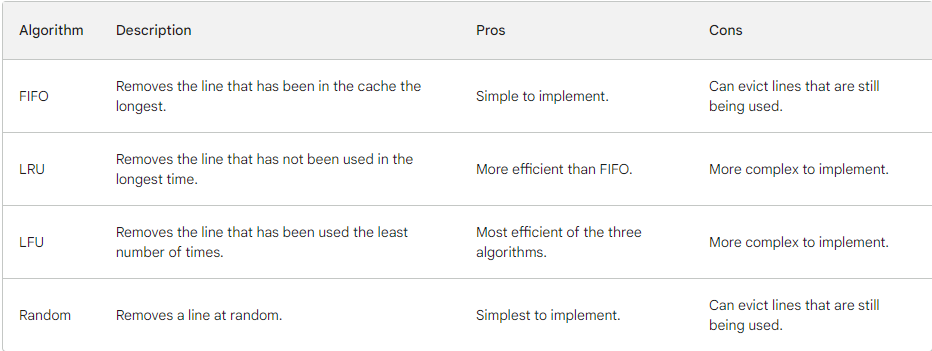

Comparison
